Tianjin TSX tarjetas de seguridad para andamios

  • 500 - 999 Sets
    $30.00
  • >=1000 Sets
    $20.00
Color:
Lead Time:
Quantity(Sets) 1 - 500 501 - 1000 >1000
Est. Time(days) 21 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
tarjetas de seguridad para andamios
Place of Origin:
Tianjin China (Mainland)
Brand Name:
TSX Group
Model Number:
seguridad para andamios
Name:
Tianjin TSX tarjetas de seguridad para andamios
Surface treatment:
Painted/Galvanized/Powder Coated
Certificate::
ISO9001:2008/SGS
Sub Tube:
25*1.8mm
Component:
Cross Brace/Joint pin/Jaok base
Material:
Q235 steel
Application::
Supporting Scaffolding System
Main Tube:
42*2.0mm
Size:
Customer`s
Delivery Time:
3-4 Weeks
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Bundle, Bulk or as customer request Seaworthy package.
Port
Tianjin Port
Lead Time :
Quantity(Sets) 1 - 500 501 - 1000 >1000
Est. Time(days) 21 30 To be negotiated
Product Description


Tianjin TSX tarjetas de seguridad para andamios

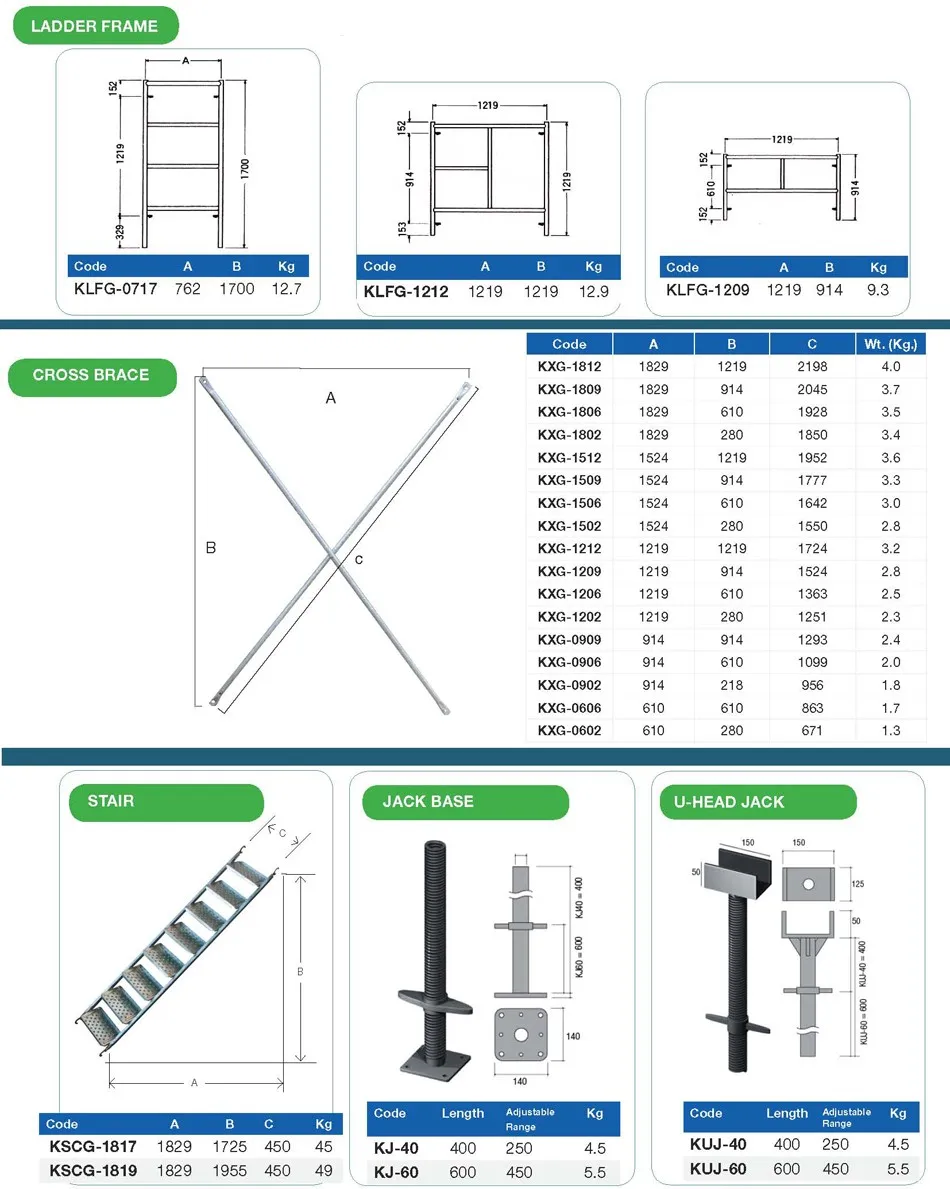

The detail size are as following:

Scaffolding Frame
Model NO.
Specification
Weight

Walking Through

H Frame Scaffolding
1930*1219mm
12.5/13.5kg
1700*1219mm
12.5/13kg
1700*914mm
10.8kg
1524*1219mm
11kg



Ladder Frame
2130*1219mm
17kg
1700*1219mm
14/14.5kg
1524*1524mm
13-14kg
1219*1219mm
10kg
914*1219mm
7.5kg
Advangages of Scaffolding Frame
1. Scaffolding Frame are widely used in construction as working platform or support syetem.
2. Scaffolding Frame are highly economic benefit compared with other scaffoldings.
3. Scaffolding Frame are easily assembled and dismantled, saving you plenty of time and labor.
4. Scaffolding Frame can be used over and over again and the durability of 10 years or more, the recovery of the initial cost can be realized, the maintenace cost is small
5. It looks appearing and so beautiful.

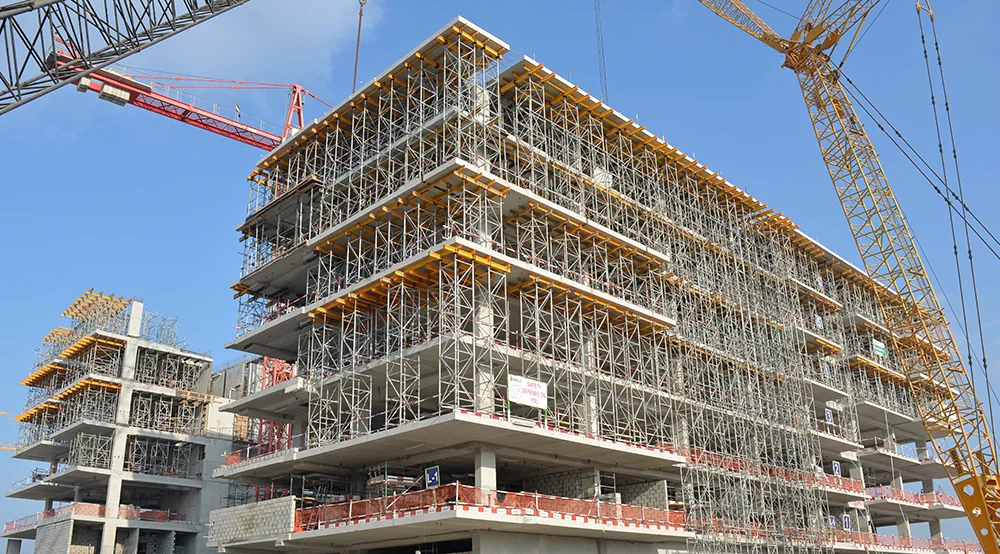

The application of scaffolding frame
It was widely used in buildings, hall, bridges, and control grid inside and outside of

high buildings, also may take mechanical and electrical installation,renovation of the

activities of the working platform, the equipment service,the paint whitewash,

temporary viewing platform, etc.

Please Click Here to send us your requirements, will provide you our best services and contact you the soonest.


Specifications

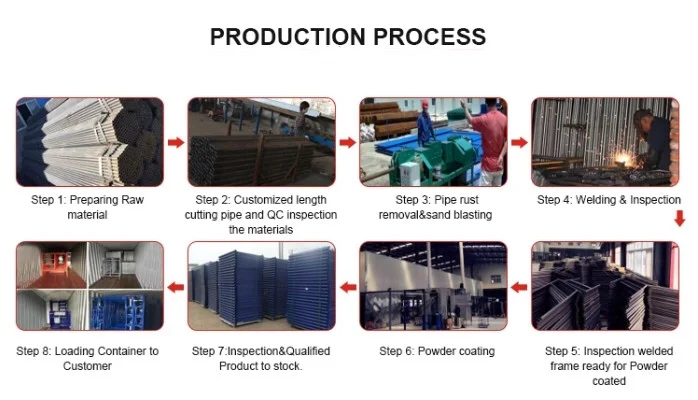

Production Process
