Steel Scaffolding Flat Formwork for Building Construction

  • 500 - 999 Square Meters
    $45.00
  • >=1000 Square Meters
    $35.00
Type:
Formwork
Lead Time:
Quantity(Square Meters) 1 - 500 >500
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin China
Brand Name:
TSX
Model Number:
ASP-104
Product name:
Steel Scaffolding Flat Formwork for Building Construction
Material:
Q235 Steel
Type:
Flat Form
Surface treatment:
Painted
Length:
600-1800mm
Height:
55mm
Packing:
In Bulk
Payment term:
T/T, L/C at sight, Cash
Delivery time:
3-4 weeks after order
Application:
Building Construction
Supply Ability
Supply Ability:
100000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
Seaworthy Standard Package
Port
Tianjin China
Picture Example:
package-img
Lead Time :
Quantity(Square Meters) 1 - 500 >500
Est. Time(days) 25 To be negotiated
Product Description

Product Name:  Steel Scaffolding Flat Formwork for Building Construction


CODE
DIMENSION(MM)
F1018
100*1800*55
F1015
100*1500*55
F1012
100*1200*55
F1007
100*750*55
F1006
100*600*55
CODE
DIMENSION(MM0
CODE
DIMENSION(MM)
F2018
200*1800*55
F3018
300*1800*55
F2015
200*1500*55
F3015
300*1500*55
F2012
200*1200*55
F3012
300*1200*55
F2009
200*900*55
F3009
300*900*55
F2007
200*750*55
F3007
300*750*55
F2006
200*600*55
F3006
300*600*55
CODE
DIMENSION(MM)
CODE
DIMENSION(MM)
F1518
150*1800*55
F1218
125*1800*55
F1515
150*1500*55
F1215
125*1500*55
F1512
150*1200*55
F1212
125*1200*55
F1509
150*900*55
F1209
125*900*55
F1507
150*750*55
F1207
125*750*55
F1506
150*600*55
F1206
125*600*55
Detailed Image

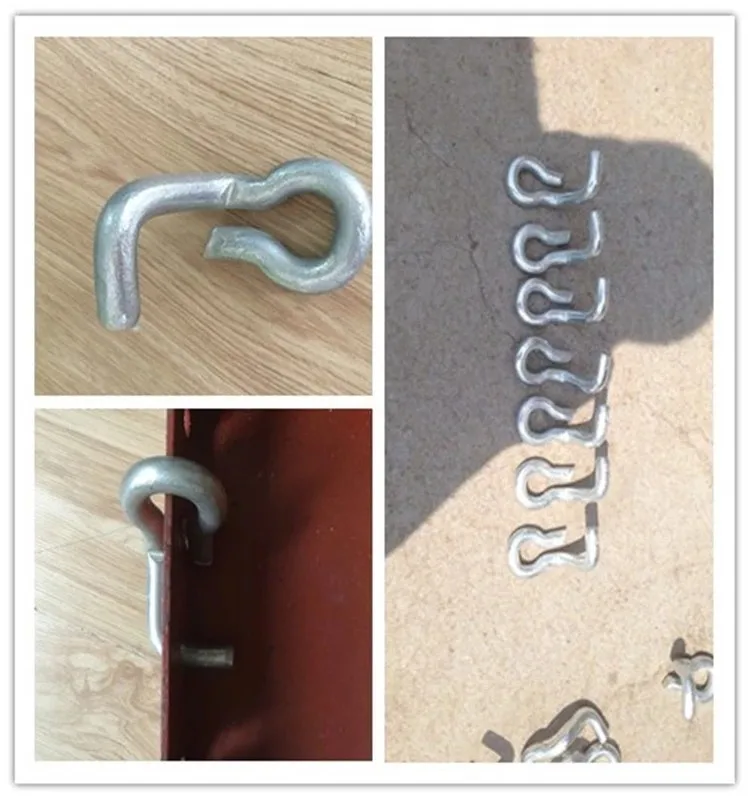

U-Clips

The yield stress, ultimate tensile stress and elongation of the U-clip shall be more than 245N/mm2, 400/mm2 and 25% respectively. The U-clip shall be galvanized by electroplated coating with minimum 8 microns thickness in accordance with BS1760 or approve equivalent.

The diameter of the U-clip shall be 13mm ±0.3mm. The shape and dimensions of U-clips to be supplied can be the similar as HDB's existing stock or otherwise.

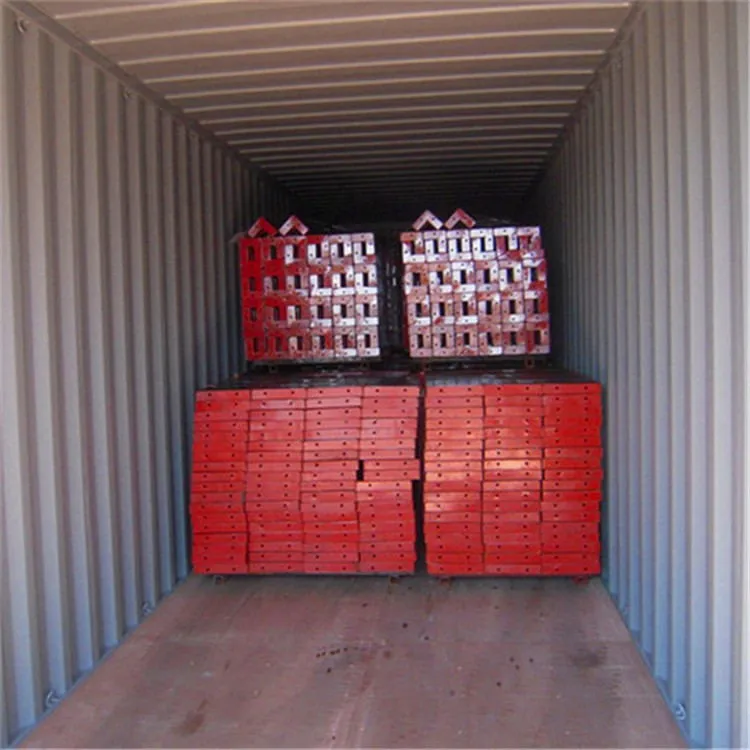

Packing & Delivery

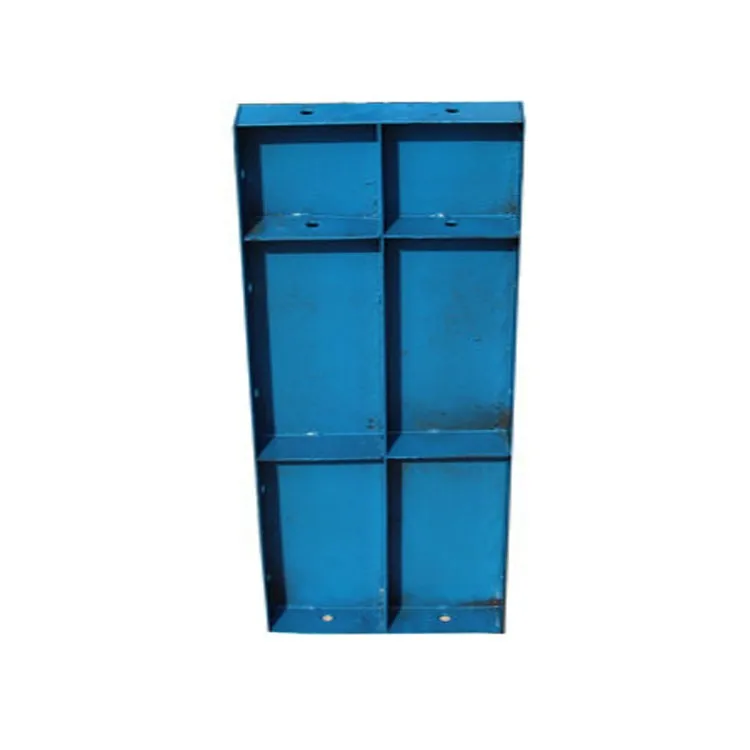

Details of Concrete Steel Formwork


1.Concrete Steel Formwork is made of Q235 steel plate which is heavy/light duty formwork system for

   concrete wall, beam, slab and column.

2.There are some ribs in the middle of Steel Formwork which can strengthen the formwork more steady.

3.Coined edge can help to form a perfect concrete finish without bubbles.

4.Steel Formwork is spray painted to against rustiness which can be reusable for many times.

5.Steel Formwork is the all-round panel for many construction areas.




WORKSHOP


Related Products
Our Company
Contact Us

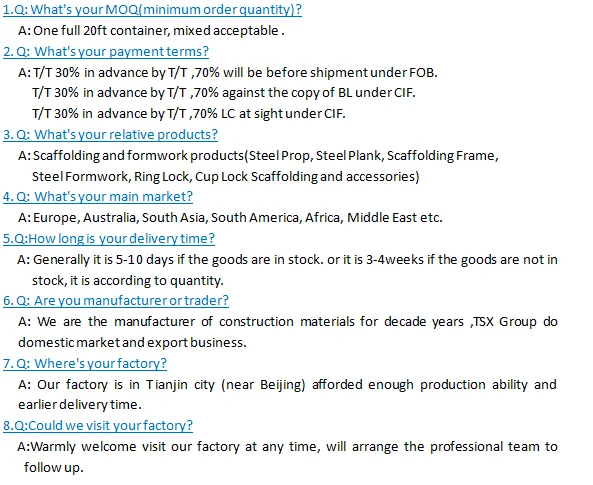

FAQ
